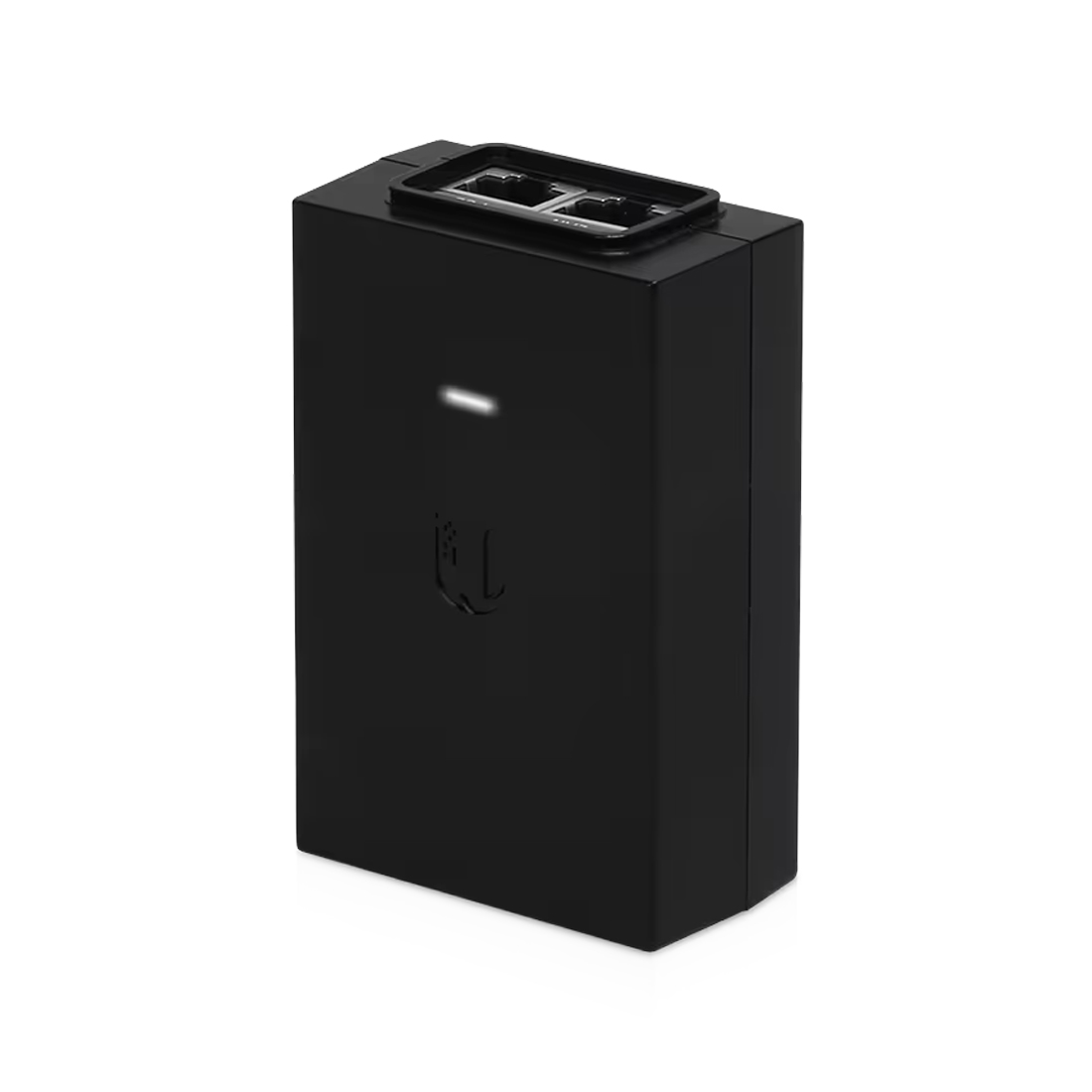

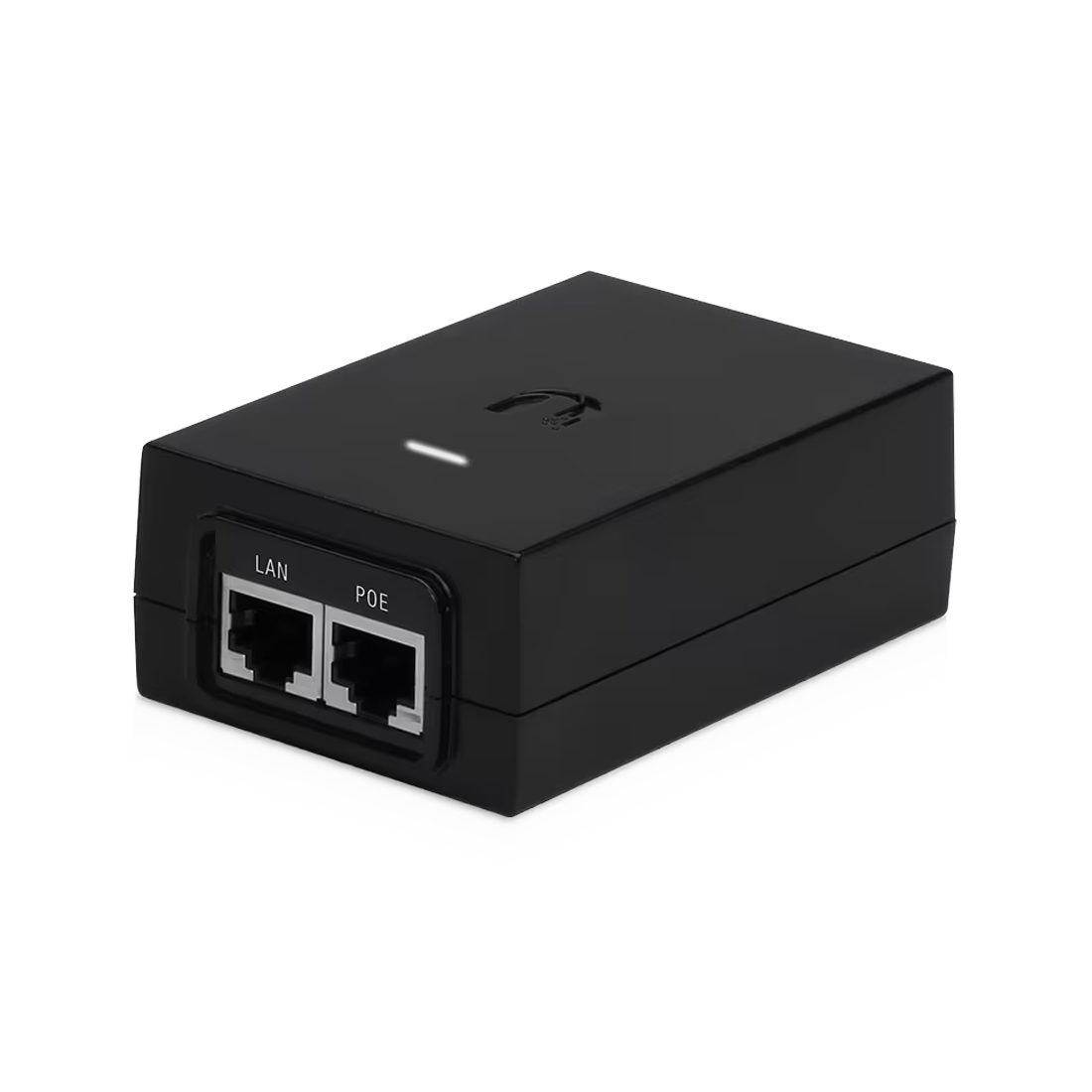

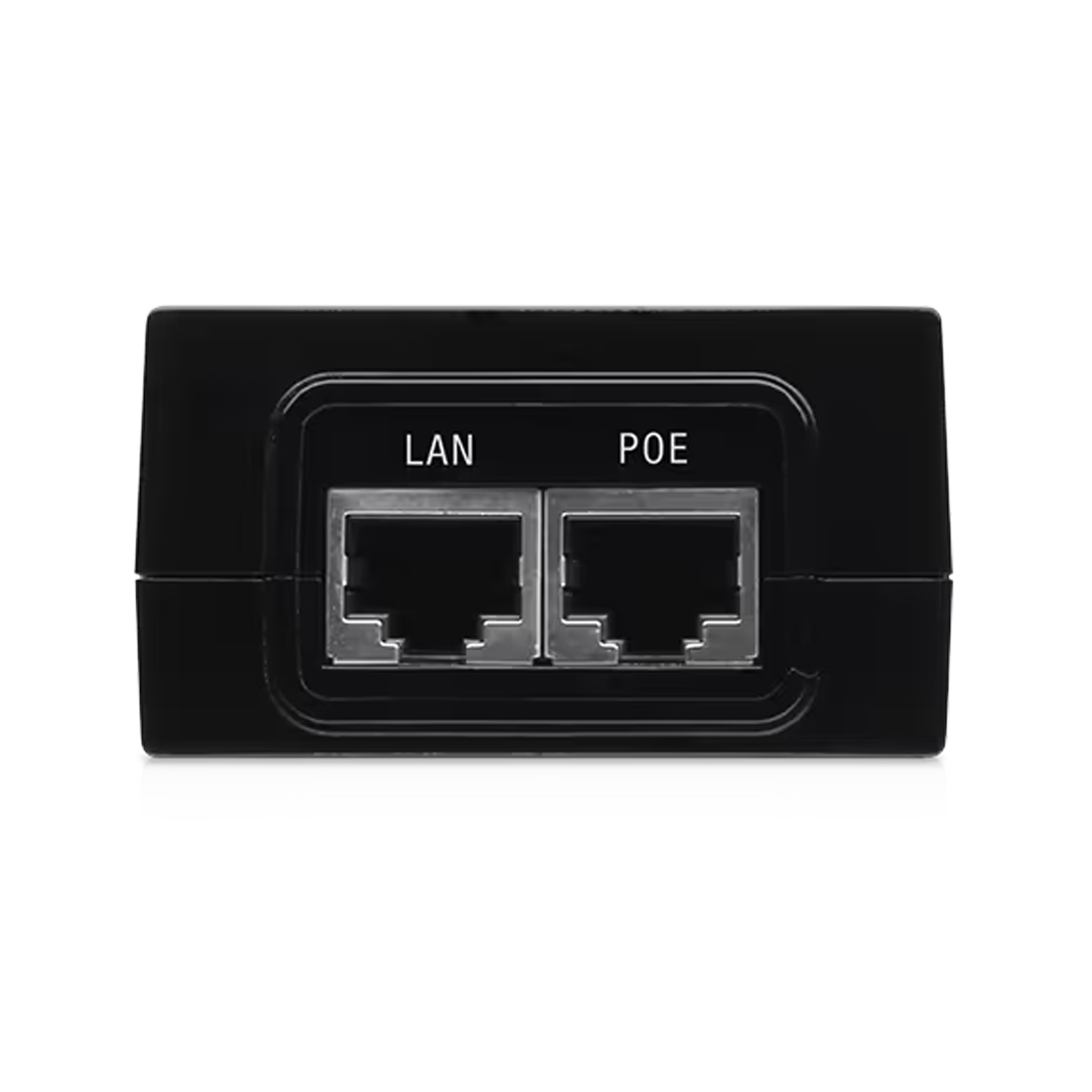

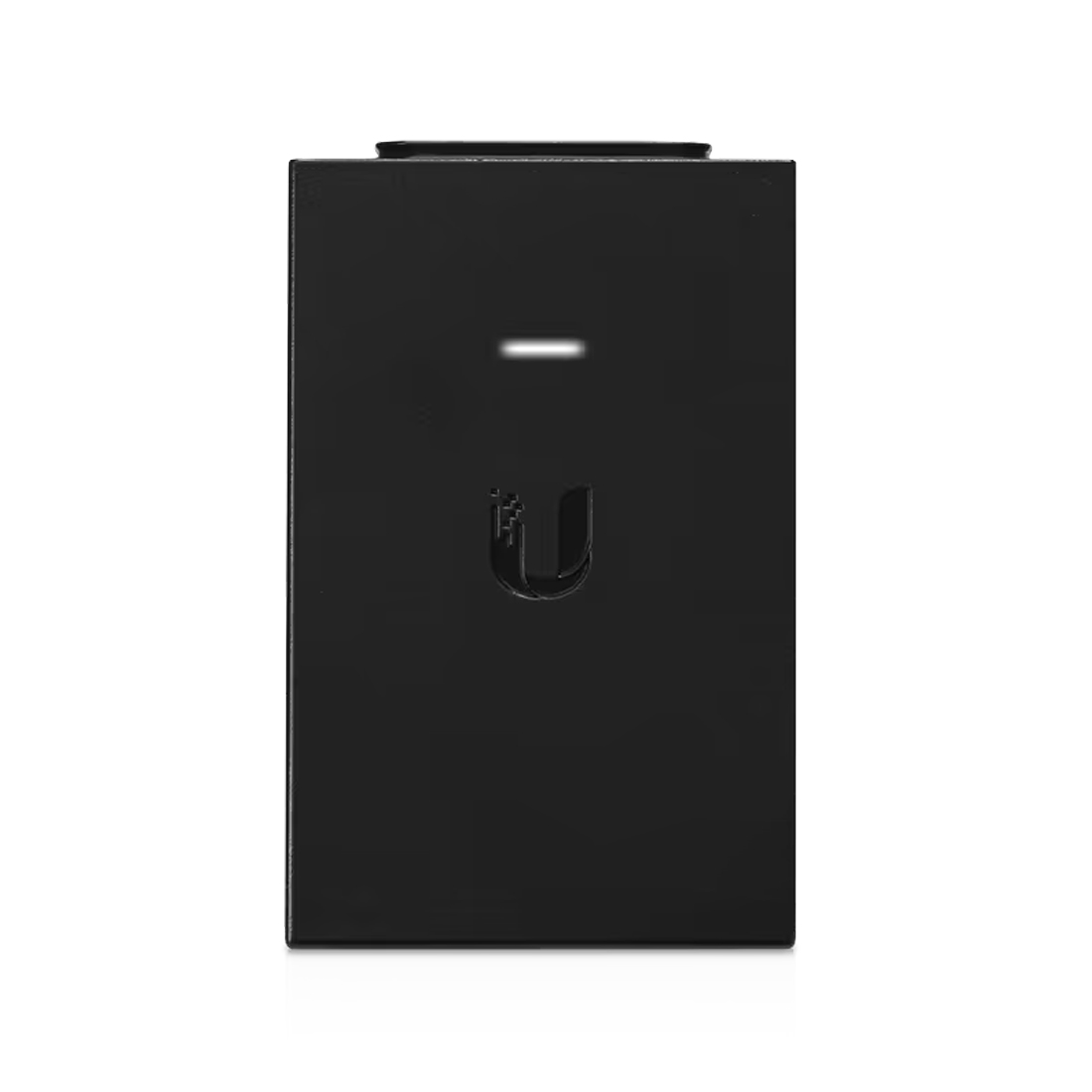

48V PoE Adapter – POE-48-24W-G

Brand:

In stock

  • Output: 48V DC @ 0.5A
  • Gigabit LAN Port: Yes
  • Input Voltage: 100–240V AC, 50/60Hz
  • Powering: 2-pair PoE (Pins 4,5+ & 7,8-)
  • Efficiency: 80%+
  • Operating Conditions: 0–40°C, 35–95% humidity
  • Storage Temperature: -30–70°C
  • Protection: Surge, difference/common mode, 11V data / 60V power clamping
  • Max Surge Discharge: 1500A (8/20 μs)
  • Dimensions: 92 × 60 × 33 mm
  • Weight: 159 g
  • AC Connector: IEC-320 C6

Sh 135,000 VAT Inclusive

Frequency

2.4 GHz (2412–2462 MHz)

Antenna Gain

10.4–11.2 dBi

Networking Interface

2× 10/100 Mbps RJ45 ports

Power

Passive PoE (24V, 0.5A) – Adapter included

Beamwidth

55° H / 53° V / 27° Elevation
